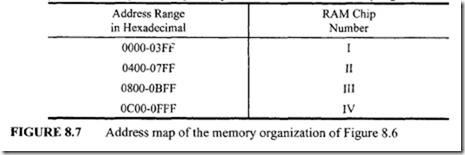

8.1.3 Virtual Memory and Memory Management concepts

Due to the massive amount of information that must be saved in most systems, the mass storage device is often a disk. If each access is to a disk (even a hard disk), then system throughput will be reduced to unacceptable levels.

An obvious solution is to use a large and fast locally accessed semiconductor memory. Unfortunately the storage cost per bit for this solution is very high. A combination

of both off-board disk (secondary memory) and on-board semiconductor main memory must be designed into a system. This requires a mechanism to manage the two-way flow of infonnation between the primary (semiconductor) and secondary (disk) media. This mechanism must be able to transfer blocks of data efficiently, keep track of block usage, and replace them in a nonarbitrary way. The main memory system must, therefore, be able to dynamically allocate memory space.

An operating system must have resource protection from corruption or abuse by users. Users must be able to protect areas of code from each other while maintaining the ability to communicate and share other areas of code. All these requirements indicate the need for a device, located between the microprocessor and memory, to control accesses, perfonn address mappings, and act as an interface between the logical (Programmer’s memory) and the physical (Microprocessor’s directly addressable memory) address spaces. Because this device must manage the memory use configuration, it is appropriately called the "memory management unit (MMU)." Typical 32-bit processors such as the Motorola 68030/68040 and the Intel 80486/Pentium include on-chip MMUs. The MMU reduces the burden of the memory management function of the operating system.

The basic functions provided by the MMU are address translation and protection.

The MMU translates logical program addresses to physical memory address. Note that in assembly language programming, addresses are referred to by symbolic names. These addresses in a program are called logical addresses because they indicate the logical positions of instructions and data. The MMU translates these logical addresses to physical addresses provided by the memory chips. The MMU can perfonn address translation in one of two ways:

1. By using the substitution technique as shown in Figure 8.8(a)

2. By adding an offset to each logical address to obtain the corresponding physical address as shown in Figure 8.8(b) Address translation using the substitution technique is faster than the offset method. However, the offset method has the advantage of mapping a logical address to any physical address as detennined by the offset value.

Memory is usually divided into small manageable units. The tenns "page" and "segment" are frequently used to describe these units. Paging divides the memory into equal-sized pages; segmentation divides the memory into variable-sized segments. It is relatively easier to implement the address translation table if the logical and main memory spaces are divided into pages.

There are three ways to map logical addresses to physical addresses: paging,

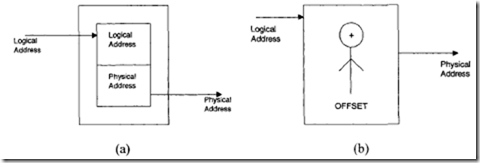

FIGURE8.8

(a) Address translation using the substitution technique;

(b) Address translation by the offset technique

segmentation, and combined paging/segmentation. In a paged system, a user has access to a larger address space than physical memory provides. The virtual memory system is managed by both hardware and software. The hardware included in the memory management unit handles address translation. The memory management software in the operating system performs all functions including page replacement policies to provide efficient memory utilization. The memory management software performs functions such as removal of the desired page from main memory to accommodate a new page, transferring a new page from secondary to main memory at the right instant of time, and placing the page at the right location in memory.

If the main memory is full during transfer from secondary to main memory, it is necessary to remove a page from main memory to accommodate the new page. Two popular page replacement policies are first-in-first-out (FIFO) and least recently used (LRU). The FIFO policy removes the page from main memory that has been resident in memory for the longest amount of time. The FIFO replacement policy is easy to implement, but one of its main disadvantages is that it is likely to replace heavily used pages. Note that heavily used pages are resident in main memory for the longest amount of time. Sometimes this replacement policy might be a poor choice. For example, in a time-shared system, several users normally share a copy of the text editor in order to type and correct programs. The FIFO policy on such a system might replace a heavily used editor page to make room for a new page. This editor page might be recalled to main memory immediately. The FIFO, in this case, would be a poor choice. The LRU policy, on the other hand, replaces the page that has not been used for the longest amount of time.

In the segmentation method, the MMU utilizes the segment selector to obtain a descriptor from a table in memory containing several descriptors. A descriptor contains the physical base address for a segment, the segment’s privilege level, and some control bits. When the MMU obtains a logical address from the microprocessor, it first determines whether the segment is already in the physical memory. If it is, the MMU adds an offset component to the segment base component of the address obtained from the segment descriptor table to provide the physical address. The MMU then generates the physical address on the address bus for selecting the memory. On the other hand, if the MMU does not find the logical address in physical memory, it interrupts the microprocessor. The microprocessor executes a service routine to bring the desired program from a secondary memory such as disk to the physical memory. The MMU determines the physical address using the segment offset and descriptor as described earlier and then generates the physical address on the address bus for memory. A segment will usually consist of an integral number of pages, each, say, 256 bytes long. With different-sized segments being swapped in and out, areas of valuable primary memory can become unusable. Memory is unusable for segmentation when it is sandwiched between already allocated segments and if it is not

large enough to hold the latest segment that needs to be loaded. This is called "external fragmentation" and is handled by MMUs using special techniques. An example of external fragmentation is given in Figure 8.9. The advantages of segmented memory management are that few descriptors are required for large programs or data spaces and that internal fragmentation (to be discussed later) is minimized. The disadvantages include external fragmentation, the need for involved algorithms for placing data, possible restrictions on the starting address, and the need for longer data swap times to support virtual memory.

Address translation using descriptor tables offers a protection feature. A segment or a page can be protected from access by a program section of a lower privilege level. For example, the selector component of each logical address includes one or two bits indicating the privilege level of the program requesting access to a segment. Each segment descriptor also includes one or two bits providing the privilege level of that segment. When an executing program tries to access a segment, the MMU can compare the selector privilege level with the descriptor privilege level. If the segment selector has the same or higher privilege level, then the MMU permits the access. If the privilege level of the selector is lower than that of the descriptor, the MMU can interrupt the microprocessor, informing it of a privilege-level violation. Therefore, the indirect technique of generating a physical address provides a mechanism of protecting critical program sections in the operating system. Because paging divides the memory into equal-sized pages, it avoids the major problem of segmentation–external fragmentation. Because the pages are of the same size, when a new page is requested and an old one swapped out, the new one will always fit into the vacated space. However, a problem common to both techniques remains-internal fragmentation.

Internal fragmentation is a condition where memory is unused but allocated due to memory block size implementation restrictions. This occurs when a module needs, say, 300 bytes and page is lK bytes, as shown in Figure 8.10 In the paged-segmentation method, each segment contains a number of pages. The logical address is divided into three components: segment, page, and word. The segment component defines a segment number, the page component defines the page within the segment, and the word component provides the particular word within the page. A page component of n bits can provide up to 2" pages. A segment can be assigned with one or more pages up to maximum of 2" pages; therefore, a segment size depends on the number of pages assigned to it.

A protection mechanism can be assigned to either a physical address or a logical address. Physical memory protection can be accomplished by using one or more protection bits with each block to define the access type permitted on the block. This means that

each time a page is transferred from one block to another, the block protection bits must be updated. A more efficient approach is to provide a protection feature in logical address space by including protection bits in descriptors of the segment table in the MMU.

Virtual memory is the most fundamental concept implemented by a system that performs

memory-management functions such as space allocation, program relocation, code sharing and protection. The key idea behind this concept is to allow a user program to address more locations than those available in a physical memory. An address generated by a user program is called a virtual address. The set of virtual addresses constitutes the virtual address space. Similarly, the main memory of a computer contains a fixed number of addressable locations and a set of these locations forms the physical address space. The basic hardware for virtual memory is implemented in modern microprocessors as an on­ chip feature. These contemporary processors support both cache and virtual memories. The virtual addresses are typically converted to physical addresses and then applied to cache.

In the early days, when a programmer used to write a large program that could not fit into the main memory, it was necessary to divide the program into small portions so each one could fit into the primary memory. These small portions are called overlays. A programmer has to design overlays so that they are independent of each other. Under these circumstances, one can successively bring each overlay into the main memory and execute them in a sequence.

Although this idea appears to be simple, it increases the program-development time considerably.

However, in a system that uses a virtual memory, the size of the virtual address space is usually much larger than the available physical address space. In such a system, a programmer does not have to worry about overlay design, and thus a program can be written assuming a huge address space is available. In a virtual memory system, the programming effort can be greatly simplified. However, in reality, the actual number of physical addresses available is considerably less than the number of virtual addresses provided by the system. There should be some mechanism for dividing a large program into small overlays automatically. A virtual memory system is one that mechanizes the process of overlay generation by performing a series of mapping operations.

A virtual memory system may be configured in one of the following ways:

• Paging systems
• Segmentation systems

In a paging system, the virtual address space is divided into equal-size blocks called pages. Similarly, the physical memory is also divided into equal-size blocks called frames. The size of a page is the same as the size of a frame. The size of a page may be 512, 1024 or 2048 words.

In a paging system, each virtual address may be regarded as an ordered pair (p, n), where pis the page number and n is the word number within the page p. Sometimes the quantity n is referred to as the displacement, or offset. A user program may be regarded as a sequence of pages, and a complete copy of the program is always held in a backup store such as a disk. A page p of the user program can be placed in any available page frame p’ of the main memory. A program may access a page if the page is in the main memory. In a paging scheme, pages are brought from secondary memory and are stored in main memory in a dynamic manner. All virtual addresses generated by a user program must be translated into physical memory addresses. This process is known as dynamic address translation and is shown in Figure 8.11.

When a running program accesses a virtual memory location v = (p, n), the

mapping algorithm finds that the virtual page p is mapped to the physical frame p’. The physical address is then determined by appending p’ ton.

This dynamic address translator can be implemented using a page table. In most systems, this table is maintained in the main memory.lt wiii have one entry for each virtual page of the virtual address space. This is illustrated in the following example.

Example 8.1

Design a mapping scheme with the following specifications:

• Virtual address space= 32K words
• Main memory size = 8K words
• Page size = 2K words
• Secondary memory address = 24 bits

Solution

32K words can be divided into 16 virtual pages with 2K words per page, as

follows:·

Since there are 32K addresses in the virtual space, 15 bits are required for the virtual address. Because there are 16 virtual pages, the page map table contains 16 entries. The 4 most-significant bits of the virtual address are used as an index to the page map table, and the remaining 11 bits of the virtual address are used as the displacement to locate a word within the page frame. Each entry of the page table is 32 bits long. This can be obtained as follows:

1 bit for determining whether the page table is in main memory or not (residence bit).

2 bits for main memory page frame number.

24 bits for secondary memory address

5  bits for future use. (Unused)

32 bits total

The complete layout of the page table is shown in Figure 8.12. Assume the virtual address generated is 0111 000 0010 1101. From this, compute the following:

Virtual page number = 7₁₀

Displacement = 43 ₁₀

From the page-map table entry corresponding to the address 0Ill, the page can be found in the main memory (since the page resident bit is 1).

The required virtual page is mapped to main memory page frame number 2. Therefore, the actual physical word is the 43rd word in the second page frame of the main memory.

So far, a page referenced by a program is assumed always to be found in the main memory. In practice, this is not necessarily true. When a page needed by a program is not assigned to the main memory, a page fault occurrs. A page fault is indicated by an interrupt, and when this interrupt occurs, control is transferred to a service routine of the operating system called the page-fault handler. The sequence of activities performed by the page­ fault handler are summarized as follows:

• The secondary memory address of the required page pis located from the page table.
• Page p from the secondary memory is transferred into one of the available main memory frames by performing a block-move operation.
• The page table is updated by entering the frame number where page p is loaded and by setting the residence bit to 1 and the change bit to 0.

When a page-fault handler completes its task, control is transferred to the user program, and the main memory is accessed again for the required data or instruction. All

these activities are kept hidden from a user. Pages are transferred to main memory only at specified times. The policy that governs this decision is known as the fetch policy. Similarly, when a page is to be transferred from the secondary memory to main memory, all frames may be full. In such a situation, one of the frames has to be removed from the main memory to provide room for an incoming page. The frame to be removed is selected using a replacement policy. The performance of a virtual memory system is dependent upon the fetch and replacement strategies. These issues are discussed later.

The paging concept covered so far is viewed as a one-dimensional technique because the virtual addresses generated by a program may linearly increase from 0 to some maximum value M. There are many situations where it is desirable to have a multidimensional virtual address space. This is the key idea behind segmentation systems.

Each logical entity such as a stack, an array, or a subroutine has a separate virtual address space in segmentation systems. Each virtual address space is called a segment, and each segment can grow from zero to some maximum value. Since each segment refers to a separate virtual address space, it can grow or shrink independently without affecting other segments.

In a segmentation system, the details about segments are held in a table called a segment table. Each entry in the segment table is called a segment descriptor, and it typically includes the following information:

• Segment base address b (starting address of the segment in the main memory)
• Segment length l (size of a segment)

• Segment presence bit
• Protection bits

From the structure of a segment descriptor, it is possible to create two or more segments whose sizes are different from one another. In a sense, a segmentation system becomes a paging system if all segments are of equal length. Because of this similarity, there is a close relationship between the paging and segmentation systems from the viewpoint of address translation.

A virtual address, V, in a segmentation system is regarded as an ordered pair (s, d), where s is the segment number and d is the displacement within segments. The address translator for a segmentation system can be implemented using a segment table, and its organization is shown in Figure 8.13.

The details of the address translation process is briefly discussed next.

Let V be the virtual address generated by the user program. First, the segment number field, s, of the virtual address Vis used as an index to the segment table. The base address and length of this segment are b, and!,, respectively. Then, the displacement d of the virtual address V is compared with the length of the segment l, to make sure that the required address lies within the segment. If d is less than or equal to !,then the comparator output Z will be high. When d s !, ,the physical address is formed by adding b, and d. From this physical address, data is retrieved and transferred to the CPU. However, when d > !,

, the required address lies out of the segment range, and thus an address out of range trap will be generated. A trap is a nonmaskable interrupt with highest priority.

In a segmentation system, a segment needed by a program may not reside in main memory. This situation is indicated by a bit called a valid bit. A valid bit serves the same purpose as that of a page resident bit, and thus it is regarded as a component of the segment descriptor. When the valid bit is reset to 0, it may be concluded that the required segment is not in main memory.

This means that its secondary memory address must be included in the segment descriptor. Recall that each segment represents a logical entity. This implies that we can protect segments with different protection protocols based on the logical contents of the segment. The following are the common protection protocols used in a segmentation system:

• Read only
• Execute only
• Read and execute only
• Unlimited access
• No access

Thus it follows that these protection protocols have to be encoded into some protection codes and these codes have to be included in a segment descriptor.

In a segmented memory system, when a virtual address is translated into a physical address, one of the following traps may be generated:

• Segment fault trap is generated when the required segment is not in the main memory.
• Address violation trap occurs when d >/,.
• Protection violation trap is generated when there is a protection violation.

When a segment fault occurs, control will be transferred to the operating system. In response, the operating system has to perform the following activities:

• First, it finds the secondary memory address of the required segment from its segment descriptor.
• Next, it transfers the required segment from the secondary to primary memory. Finally, it updates the segment descriptor to indicate that the required segment is in the main memory.

After performing the preceding activities, the operating system transfers control to the user program and the data or instruction retrieval or write operation is repeated.

A comparison of the paging and segmentation systems is provided next. The primary idea behind a paging system is to provide a huge virtual space to a programmer, allowing a programmer to be relieved from performing tedious memory-management tasks such as overlay design. The main goal of a segmentation system is to provide several virtual address spaces, so the programmer can efficiently manage different logical entities such as a program, data, or a stack.

The operation of a paging system can be kept hidden at the user level. However,a programmer is aware of the existence of a segmented memory system.

To run a program in a paging system, only its current page is needed in the main memory. Several programs can be held in the main memory and can be multiplexed. The paging concept improves the performance of a multiprogramming system. In contrast, a segmented memory system can be operated only if the entire program segment is held in the main memory.

In a paging system, a programmer cannot efficiently handle typical data structures

such as stacks or symbol tables because their sizes vary in a dynamic fashion during program execution. Typically, large pages for a symbol table or small pages for a stack cannot be created. In a segmentation system, a programmer can treat these two structures as two logical entities and define the two segments with different sizes.

The concept of segmentation encourages people to share programs efficiently. For example, assume a copy of a matrix multiplication subroutine is held in the main memory. Two or more users can use this routine if their segment tables contain copies of

the segment descriptor corresponding to this routine. In a paging system, this task cannot be accomplished efficiently because the system operation is hidden from the user. This result also implies that in a segmentation system, the user can apply protection features to each segment in any desired manner. However, a paging system does not provide such a versatile protection feature.

Since page size is a fixed parameter in a paging system, a new page can always be

loaded in the space used by a page being swapped out. However, in a segmentation system with uneven segment sizes, there is no guarantee that an incoming segment can fit into the free space created by a segment being swapped out.

In a dynamic situation, several programs may request more space, whereas some

other programs may be in the process of releasing the spaces used by them. When this happens in a segmented memory system, there is a possibility that uneven-sized free spaces may be sparsely distributed in the physical address space. These free spaces are so irregular in size that they cannot normally be used to satisfy any new request. This is called an external fragmentation, and an operating system has to merge all free spaces to form a single large useful segment by moving all active segments to one end of the memory. This activity is known as memory compaction. This is a time-consuming operation and is a pure overhead. Since pages are of equal size, no external fragmentation can occur in a paging system.

In a segmented memory system, a programmer defines a segment, and all segments are completely filled.

The page size is decided by the operating system, and the last page of a program may not be filled completely when a program is stored in a sequence of pages. The space not filled in the last page cannot be used for any other program. This difficulty is known as internal fragmentation-a potential disadvantage of a paging system.

In summary, the paging concept simplifies the memory-management tasks to be performed by an operating system and therefore, can be handled efficiently by an operating system. The segmentation approach is desirable to programmers when both protection and

sharing of logical entities among a group of programmers are required.

To take advantage of both paging and segmentation, some systems use a different approach, in which these concepts are merged. In this technique, a segment is viewed as a collection of pages. The number of pages per segment may vary. However, the number of words per page still remains fixed. In this situation, a virtual address V is an ordered triple (s, p, d), where s is the segment number and p and dare the page number and the displacement within a page, respectively.

The following tables are used to translate a virtual address into a physical address:

Page table: This table holds pointers to the physical frames.

Segment table: Each entry in the segment table contains the base address of the page table that holds the details about the pages that belong to the given segment.

The address-translation scheme of such a paged-segmentation system is shown in Figure 8.14:

• First, the segment number s of the virtual address is used as an index to the segment table, which leads to the base address bP of the page table.
• Then, the page number p of the virtual address is used as an index to the page table, and the base address of the frame number p’ (to which the page p is mapped) can be found.
• Finally, the physical memory address is computed by adding the displacement d of the virtual address to the base address p’ obtained before.

To illustrate this concept, the following numerical example is provided.
