Module6 8086 Microprocessor and Peripherals part1 .

6.1 8255 Programmable Peripheral Interface and Interfacing The 8255 is a widely used, programmable parallel I/O device. It can be programmed to transfer data under data under various conditions, from simple I/O to interrupt I/O. It is flexible, versatile and economical (when multiple I/O ports are required). It is an important general purpose I/O device that can be used with almost any microprocessor.

The 8255 has 24 I/O pins that can be grouped primarily into two 8 bit parallel ports: A and B, with the remaining 8 bits as Port C. The 8 bits of port C can be used as individual bits or be grouped into two 4 bit ports : CUpper (CU) and CLower (CL). The functions of these ports are defined by writing a control word in the control register.

8255 can be used in two modes: Bit set/Reset (BSR) mode and I/O mode. The BSR mode is used to set or reset the bits in port C. The I/O mode is further divided into 3 modes: mode 0, mode 1 and mode 2. In mode 0, all ports function as simple I/O ports. Mode 1 is a handshake mode whereby Port A and/or Port B use bits from Port C as handshake signals. In the handshake mode, two types of I/O data transfer can be implemented: status check and interrupt. In mode 2, Port A can be set up for bidirectional data transfer using handshake signals from Port C, and Port B can be set up either in mode 0 or mode 1.

clip_image002

Fig. 6.1 Pin Configuration of 8255

6.1.1 Control Logic of 8255

RD (Read) : This signal enables the Read operation. When the signal is low, microprocessor reads data from a selected I/O port of 8255.

WR (Write) : This control signal enables the write operation.

RESET (Reset) : It clears the control registers and sets all ports in input mode.

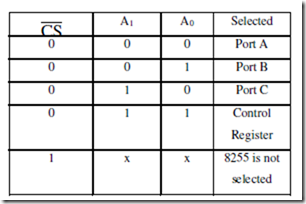

CS , A0, A1 : These are device select signals. is connected to a decoded address and A0, A1 are connected to A0, A1 of microprocessor.

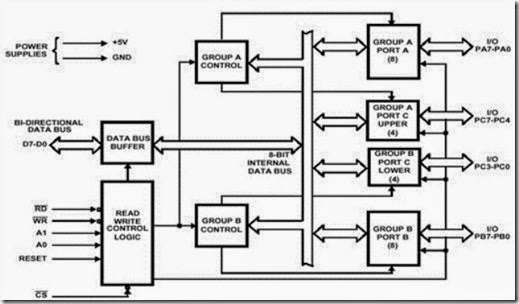

clip_image008

Fig. 6.2 Block Diagram of 8255

clip_image010

Fig. 6.2 Control word format of 8255

6.1.2 BSR Mode of 8255

clip_image011

Fig. 6.3 BSR Mode of 8255

6.1.3 I/O Modes of 8255

Mode 0 : Simple Input or Output

In this mode, Port A and Port B are used as two simple 8-bit I/O ports and Port C as two 4-bit I/O ports. Each port (or half-port, in case of Port C) can be programmed to function as simply an input port or an output port. The input/output features in mode 0 are : Outputs are latched, Inputs are not latched. Ports do not have handshake or interrupt capability.

Mode 1 : Input or Output with handshake

In mode 1, handshake signals are exchanged between the microprocessor and peripherals prior to data transfer. The ports (A and B) function as 8-bit I/O ports. They can be configured either as input or output ports. Each port (Port A and Port B) uses 3 lines from port C as handshake signals. The remaining two lines of port C can be used for simple I/O functions. Input and output data are latched and Interrupt logic is supported.

Mode 1 : Input control signals

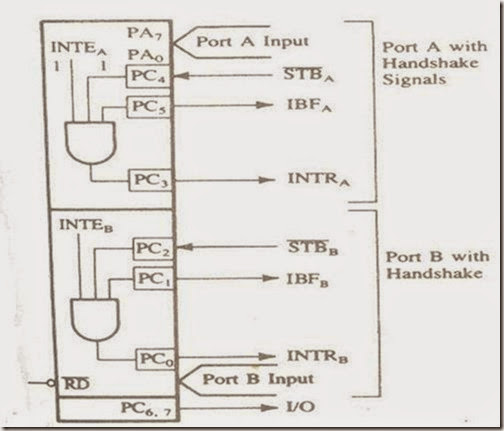

clip_image013

Fig. 6.4 Mode 1 Input Control Signals

STB (Strobe Input) : This signal (active low) is generated by a peripheral device that it has transmitted a byte of data. The 8255, in response to , generates IBF and INTR.

IBF (Input buffer full) : This signal is an acknowledgement by the 8255 to indicate that the input latch has received the data byte. This is reset when the microprocessor reads the data.

INTR (Interrupt Request) : This is an output signal that may be used to interrupt the microprocessor. This signal is generated iSf TB , IBF and INTE are all at logic 1.

INTE (Interrupt Enable) : This is an internal flip-flop to a port and needs to be set to generate the INTR signal. The two flip-flops INTEA and INTEB are set /reset using the BSR mode. The INTEA is enabled or disabled through PC4 , and INTEB is enabled or disabled through PC2 .

clip_image017

Fig. 6.5 Timing Waveforms of Mode 1 input operation

Mode 1 : Output control signals

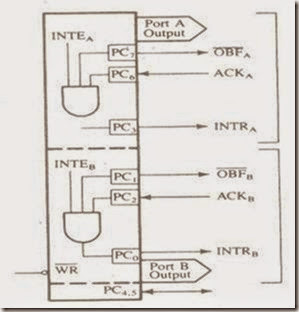

clip_image019

Fig. 6.6 Mode 1 Ounput Control Signals

Timing Waveforms of Mode 1output operation

clip_image021

Fig. 6.7 Timing Waveforms of Mode 1 output operation

OBF (Output Buffer Full) : This is an output signal that goes low when the microprocessor writes data into the output latch of the 8255. This signal indicates to an output peripheral that new data is ready to be read. It goes high again after the 8255 receives a signal from the peripheral.

ACK (Acknowledge) : This is an input signal from a peripheral that must output a low when the peripheral receives the data from the 8255 ports.

INTR (Interrupt Request) : This is an output signal, and it is set by the rising edge of the ACK signal. This signal can be used to interrupt the microprocessor to request the next data byte for output. The INTR is set when OB,F , ACK and INTE are all one and reset by the rising edge of WR. .

INTE (Interrupt Enable) : This is an internal flip-flop to a port and needs to be set to generate the INTR signal. The two flip-flops INTEA and INTEB are set /reset using the BSR mode. The INTEA signal can be enabled or disabled through PC6 , and INTEB is enabled or disabled through PC2 .

Mode 2 : Bidirectional Data Transfer

This mode is used primarily in applications such as data transfer between the two computers or floppy disk controller interface. Port A can be configured as the bidirectional port and Port B either in mode 0 or mode 1. Port A uses five signals from Port C as handshake signals for data transfer. The remaining three lines from Port C can be used either as simple I/O or as handshake signals for Port B.

clip_image026

Fig. 6.8 Mode 2 Control Signals
