Module 1 and learning unit 4:
Signal Description of 8086
•The Microprocessor 8086 is a 16-bit CPU available in different clock rates and packaged in a 40 pin CERDIP or plastic package.
•The 8086 operates in single processor or multiprocessor configuration to achieve high performance. The pins serve a particular function in minimum mode (single processor mode) and other function in maximum mode configuration (multiprocessor mode ).
•The 8086 signals can be categorised in three groups. The first are the signal having common functions in minimum as well as maximum mode.
•The second are the signals which have special functions for minimum mode and third are the signals having special functions for maximum mode.
•The following signal descriptions are common for both modes.
•AD15-AD0: These are the time multiplexed memory I/O address and data lines.
• Address remains on the lines during T1 state, while the data is available on the data bus
during T2, T3, Tw and T4.
•These lines are active high and float to a tristate during interrupt acknowledge and local bus hold acknowledge cycles.
•A19/S6,A18/S5,A17/S4,A16/S3: These are the time multiplexed address and status lines.
•During T1 these are the most significant address lines for memory operations.
•During I/O operations, these lines are low. During memory or I/O operations, status information is available on those lines for T2,T3,Tw and T4.
•The status of the interrupt enable flag bit is updated at the beginning of each clock cycle.
•The S4 and S3 combinedly indicate which segment register is presently being used for memory accesses as in below fig.
•These lines float to tri-state off during the local bus hold acknowledge. The status line S6 is always low.
•The address bit are separated from the status bit using latches controlled by the ALE signal.
BHE /S7: The bus high enable is used to indicate the transfer of data over the higher order ( D15-D8 ) data bus as shown in table. It goes low for the data transfer over D15- D8 and is used to derive chip selects of odd address memory bank or peripherals. BHE is low during T1 for read, write and interrupt acknowledge cycles, whenever a byte is to be transferred on higher byte of data bus. The status information is available during T2, T3 and T4. The signal is active low and tristated during hold. It is low during T1 for the first pulse of the interrupt acknowledges cycle.
RD Read: This signal on low indicates the peripheral that the processor is performing s memory or I/O read operation. RD is active low and shows the state for T2, T3, Tw of any read cycle. The signal remains tristated during the hold acknowledge.
•READY: This is the acknowledgement from the slow device or memory that they have completed the data transfer. The signal made available by the devices is synchronized by the 8284A clock generator to provide ready input to the 8086. the signal is active high.
•INTR-Interrupt Request: This is a triggered input. This is sampled during the last clock cycles of each instruction to determine the availability of the request. If any interrupt request is pending, the processor enters the interrupt acknowledge cycle.
•This can be internally masked by resulting the interrupt enable flag. This signal is active high and internally synchronized.
• TEST This input is examined by a ‘WAIT’ instruction. If the TEST pin goes low, execution will continue, else the processor remains in an idle state. The input is synchronized internally during each clock cycle on leading edge of clock.
•CLK– Clock Input: The clock input provides the basic timing for processor operation and bus control activity. Its an asymmetric square wave with 33% duty cycle.
•MN/ MX : The logic level at this pin decides whether the processor is to operate in either minimum or maximum mode.
•The following pin functions are for the minimum mode operation of 8086.
•M/ IO – Memory/IO: This is a status line logically equivalent to S2 in maximum mode. When it is low, it indicates the CPU is having an I/O operation, and when it is high, it indicates that the CPU is having a memory operation. This line becomes active high in the previous T4 and remains active till final T4 of the current cycle. It is tristated during local bus “hold acknowledge “.
• INTA Interrupt Acknowledge: This signal is used as a read strobe for interrupt acknowledge cycles. i.e. when it goes low, the processor has accepted the interrupt.
•ALE – Address Latch Enable: This output signal indicates the availability of the valid address on the address/data lines, and is connected to latch enable input of latches. This signal is active high and is never tristated.
•DT/ R – Data Transmit/Receive: This output is used to decide the direction of data flow through the transreceivers (bidirectional buffers). When the processor sends out data, this signal is high and when the processor is receiving data, this signal is low.
•DEN – Data Enable: This signal indicates the availability of valid data over the address/data lines. It is used to enable the transreceivers ( bidirectional buffers ) to separate the data from the multiplexed address/data signal. It is active from the middle of T2 until the middle of T4. This is tristated during ‘ hold acknowledge’ cycle.
•HOLD, HLDA- Acknowledge: When the HOLD line goes high, it indicates to the processor that another master is requesting the bus access.
•The processor, after receiving the HOLD request, issues the hold acknowledge signal on HLDA pin, in the middle of the next clock cycle after completing the current bus cycle.
•At the same time, the processor floats the local bus and control lines. When the processor detects the HOLD line low, it lowers the HLDA signal. HOLD is an asynchronous input, and is should be externally synchronized.
•If the DMA request is made while the CPU is performing a memory or I/O cycle, it will release the local bus during T4 provided:
1.The request occurs on or before T2 state of the current cycle. 2.The current cycle is not operating over the lower byte of a word.
3. The current cycle is not the first acknowledge of an interrupt acknowledge sequence.
4. A Lock instruction is not being executed.
•The following pin function are applicable for maximum mode operation of 8086.

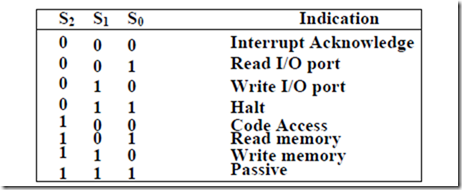

•S2, S1, S0 – Status Lines: These are the status lines which reflect the type of operation, being carried out by the processor. These become activity during T4 of the previous cycle and active during T1 and T2 of the current bus cycles.
• LOCK This output pin indicates that other system bus master will be prevented from gaining the system bus, while the LOCK signal is low.
•The LOCK signal is activated by the ‘LOCK’ prefix instruction and remains active until the completion of the next instruction. When the CPU is executing a critical instruction which requires the system bus, the LOCK prefix instruction ensures that other processors connected in the system will not gain the control of the bus.
•The 8086, while executing the prefixed instruction, asserts the bus lock signal output, which may be connected to an external bus controller.

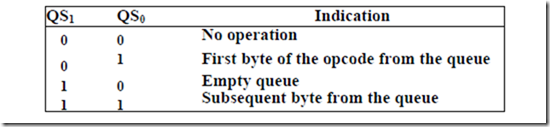

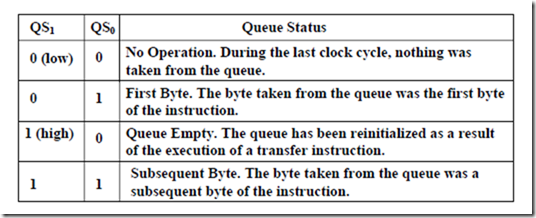

•QS1, QS0 – Queue Status: These lines give information about the status of the code- prefetch queue. These are active during the CLK cycle after while the queue operation is performed.
•This modification in a simple fetch and execute architecture of a conventional microprocessor offers an added advantage of pipelined processing of the instructions.
•The 8086 architecture has 6-byte instruction prefetch queue. Thus even the largest (6- bytes) instruction can be prefetched from the memory and stored in the prefetch. This results in a faster execution of the instructions.
•In 8085 an instruction is fetched, decoded and executed and only after the execution of this instruction, the next one is fetched.
•By prefetching the instruction, there is a considerable speeding up in instruction execution in 8086. This is known as instruction pipelining.
•At the starting the CS:IP is loaded with the required address from which the execution is to be started. Initially, the queue will be empty an the microprocessor starts a fetch operation to bring one byte (the first byte) of instruction code, if the CS:IP address is odd or two bytes at a time, if the CS:IP address is even.
•The first byte is a complete opcode in case of some instruction (one byte opcode instruction) and is a part of opcode, in case of some instructions ( two byte opcode instructions), the remaining part of code lie in second byte.
•The second byte is then decoded in continuation with the first byte to decide the instruction length and the number of subsequent bytes to be treated as instruction data.
•The queue is updated after every byte is read from the queue but the fetch cycle is initiated by BIU only if at least two bytes of the queue are empty and the EU may be concurrently executing the fetched instructions.
•The next byte after the instruction is completed is again the first opcode byte of the next instruction. A similar procedure is repeated till the complete execution of the program.•The fetch operation of the next instruction is overlapped with the execution of the current instruction. As in the architecture, there are two separate units, namely Execution unit and Bus interface unit.
•While the execution unit is busy in executing an instruction, after it is completely decoded, the bus interface unit may be fetching the bytes of the next instruction from memory, depending upon the queue status.
• RQ / GT0 , RQ / GT1 – Request/Grant: These pins are used by the other local bus master in maximum mode, to force the processor to release the local bus at the end of the processor current bus cycle.
•Each of the pin is bidirectional with RQ/GT0 having higher priority than RQ/GT1.
•RQ/GT pins have internal pull-up resistors and may be left unconnected.
•Request/Grant sequence is as follows:
1.A pulse of one clock wide from another bus master requests the bus access to 8086. 2.During T4(current) or T1(next) clock cycle, a pulse one clock wide from 8086 to the requesting master, indicates that the 8086 has allowed the local bus to float and that it will enter the ‘hold acknowledge’ state at next cycle. The CPU bus interface unit is likely to be disconnected from the local bus of the system.
3.A one clock wide pulse from the another master indicates to the 8086 that the hold request is about to end and the 8086 may regain control of the local bus at the next clock cycle. Thus each master to master exchange of the local bus is a sequence of 3 pulses. There must be at least one dead clock cycle after each bus exchange.
•The request and grant pulses are active low.
•For the bus request those are received while 8086 is performing memory or I/O cycle, the granting of the bus is governed by the rules as in case of HOLD and HLDA in minimum mode.
General Bus Operation:
•The 8086 has a combined address and data bus commonly referred as a time multiplexed address and data bus.
•The main reason behind multiplexing address and data over the same pins is the maximum utilisation of processor pins and it facilitates the use of 40 pin standard DIP package.
•The bus can be demultiplexed using a few latches and transreceivers, when ever required.
•Basically, all the processor bus cycles consist of at least four clock cycles. These are referred to as T1, T2, T3, T4. The address is transmitted by the processor during T1. It is present on the bus only for one cycle.
•The negative edge of this ALE pulse is used to separate the address and the data or status information. In maximum mode, the status lines S0, S1 and S2 are used to indicate the type of operation.
•Status bits S3 to S7 are multiplexed with higher order address bits and the BHE signal. Address is valid during T1 while status bits S3 to S7 are valid during T2 through T4.
Minimum Mode 8086 System
•In a minimum mode 8086 system, the microprocessor 8086 is operated in minimum mode by strapping its MN/MX pin to logic 1.
•In this mode, all the control signals are given out by the microprocessor chip itself. There is a single microprocessor in the minimum mode system.
•The remaining components in the system are latches, transreceivers, clock generator, memory and I/O devices. Some type of chip selection logic may be required for selecting memory or I/O devices, depending upon the address map of the system.
•Latches are generally buffered output D-type flip-flops like 74LS373 or 8282. They are used for separating the valid address from the multiplexed address/data signals and are controlled by the ALE signal generated by 8086.
•Transreceivers are the bidirectional buffers and some times they are called as data amplifiers. They are required to separate the valid data from the time multiplexed address/data signals.
•They are controlled by two signals namely, DEN and DT/R.
•The DEN signal indicates the direction of data, i.e. from or to the processor. The system contains memory for the monitor and users program storage.
•Usually, EPROM are used for monitor storage, while RAM for users program storage. A system may contain I/O devices.
•The working of the minimum mode configuration system can be better described in terms of the timing diagrams rather than qualitatively describing the operations.
•The opcode fetch and read cycles are similar. Hence the timing diagram can be categorized in two parts, the first is the timing diagram for read cycle and the second is the timing diagram for write cycle.
•The read cycle begins in T1 with the assertion of address latch enable (ALE) signal and also M / IO signal. During the negative going edge of this signal, the valid address is latched on the local bus.
•The BHE and A0 signals address low, high or both bytes. From T1 to T4 , the M/IO signal indicates a memory or I/O operation.
•At T2, the address is removed from the local bus and is sent to the output. The bus is then tristated. The read (RD) control signal is also activated in T2.
•The read (RD) signal causes the address device to enable its data bus drivers. After RD goes low, the valid data is available on the data bus.
•The addressed device will drive the READY line high. When the processor returns the read signal to high level, the addressed device will again tristate its bus drivers.

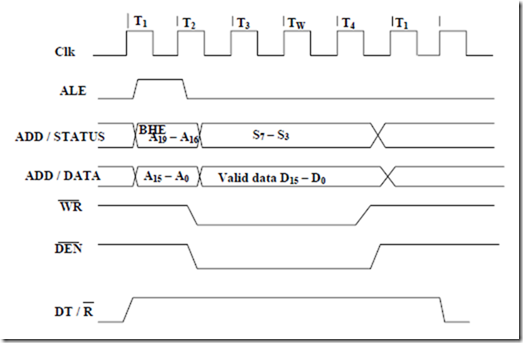

•A write cycle also begins with the assertion of ALE and the emission of the address. The
M/IO signal is again asserted to indicate a memory or I/O operation. In T2, after sending the address in T1, the processor sends the data to be written to the addressed location.
•The data remains on the bus until middle of T4 state. The WR becomes active at the
beginning of T2 (unlike RD is somewhat delayed in T2 to provide time for floating).
•The BHE and A0 signals are used to select the proper byte or bytes of memory or I/O word to be read or write.
•The M/IO, RD and WR signals indicate the type of data transfer as specified in table below.

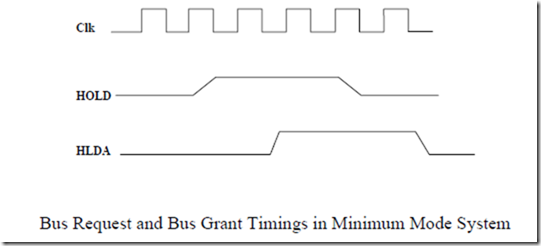

•Hold Response sequence: The HOLD pin is checked at leading edge of each clock pulse. If it is received active by the processor before T4 of the previous cycle or during T1 state of the current cycle, the CPU activates HLDA in the next clock cycle and for succeeding bus cycles, the bus will be given to another requesting master.
•The control of the bus is not regained by the processor until the requesting master does not drop the HOLD pin low. When the request is dropped by the requesting master, the HLDA is dropped by the processor at the trailing edge of the next clock.

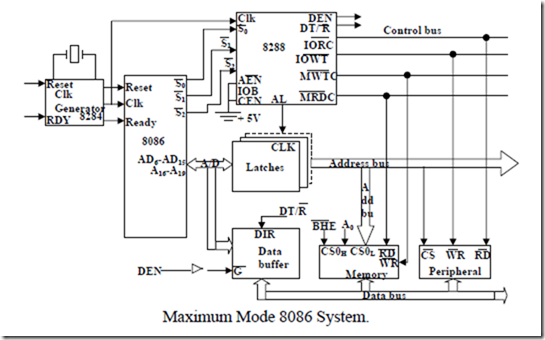

Maximum Mode 8086 System •In the maximum mode, the 8086 is operated by strapping the MN/MX pin to ground.
•In this mode, the processor derives the status signal S2, S1, S0. Another chip called bus controller derives the control signal using this status information.
•In the maximum mode, there may be more than one microprocessor in the system configuration.
•The components in the system are same as in the minimum mode system.
•The basic function of the bus controller chip IC8288, is to derive control signals like RD and WR ( for memory and I/O devices), DEN, DT/R, ALE etc. using the information by the processor on the status lines.
•The bus controller chip has input lines S2, S1, S0 and CLK. These inputs to 8288 are driven by CPU.
•It derives the outputs ALE, DEN, DT/R, MRDC, MWTC, AMWC, IORC, IOWC and AIOWC. The AEN, IOB and CEN pins are specially useful for multiprocessor systems.
•AEN and IOB are generally grounded. CEN pin is usually tied to +5V. The significance of the MCE/PDEN output depends upon the status of the IOB pin.
•If IOB is grounded, it acts as master cascade enable to control cascade 8259A, else it acts as peripheral data enable used in the multiple bus configurations.
•INTA pin used to issue two interrupt acknowledge pulses to the interrupt controller or to an interrupting device.
•IORC, IOWC are I/O read command and I/O write command signals respectively. These signals enable an IO interface to read or write the data from or to the address port.
•The MRDC, MWTC are memory read command and memory write command signals respectively and may be used as memory read or write signals.
•All these command signals instructs the memory to accept or send data from or to the bus.
•For both of these write command signals, the advanced signals namely AIOWC and AMWTC are available.

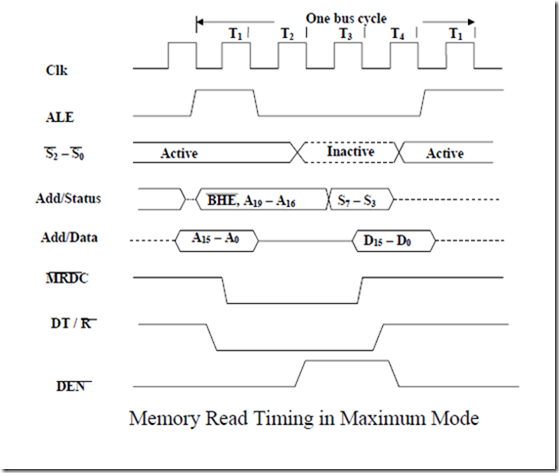

•Here the only difference between in timing diagram between minimum mode and maximum mode is the status signals used and the available control and advanced command signals.
•R0, S1, S2 are set at the beginning of bus cycle.8288 bus controller will output a pulse as on the ALE and apply a required signal to its DT / R pin during T1.
•In T2, 8288 will set DEN=1 thus enabling transceivers, and for an input it will activate
MRDC or IORC. These signals are activated until T4. For an output, the AMWC or
AIOWC is activated from T2 to T4 and MWTC or IOWC is activated from T3 to T4.
•The status bit S0 to S2 remains active until T3 and become passive during T3 and T4.
•If reader input is not activated before T3, wait state will be inserted between T3 and T4.

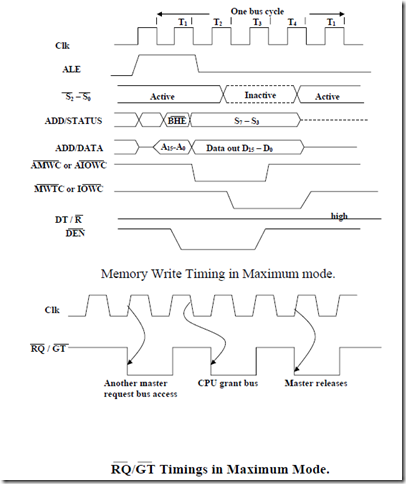

•Timings for RQ/ GT Signals:
The request/grant response sequence contains a series of three pulses. The request/grant pins are checked at each rising pulse of clock input.
•When a request is detected and if the condition for HOLD request are satisfied, the processor issues a grant pulse over the RQ/GT pin immediately during T4 (current) or T1 (next) state.
•When the requesting master receives this pulse, it accepts the control of the bus, it sends a release pulse to the processor using RQ/GT pin.
•When the Minimum mode operation is selected, the 8086 provides all control signals needed to implement the memory and I/O interface.

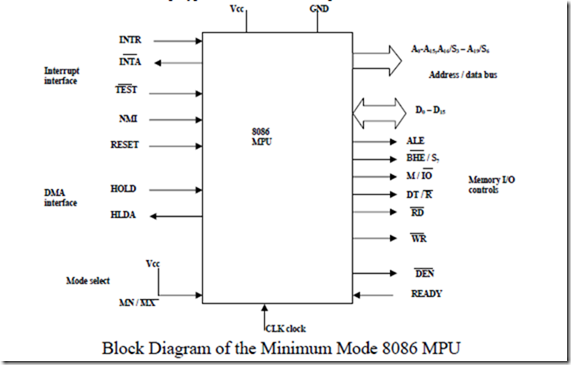

•The minimum mode signal can be divided into the following basic groups: address/data bus, status, control, interrupt and DMA.
•Address/Data Bus: these lines serve two functions. As an address bus is 20 bits long and consists of signal lines A0 through A19. A19 represents the MSB and A0 LSB. A 20bit address gives the 8086 a 1Mbyte memory address space. More over it has an independent I/O address space which is 64K bytes in length.
•The 16 data bus lines D0 through D15 are actually multiplexed with address lines A0 through A15 respectively. By multiplexed we mean that the bus work as an address bus during first machine cycle and as a data bus during next machine cycles. D15 is the MSB and D0 LSB.
•When acting as a data bus, they carry read/write data for memory, input/output data for I/O devices, and interrupt type codes from an interrupt controller.
•Status signal:
The four most significant address lines A19 through A16 are also multiplexed but in this case with status signals S6 through S3. These status bits are output on the bus at the same time that data are transferred over the other bus lines.

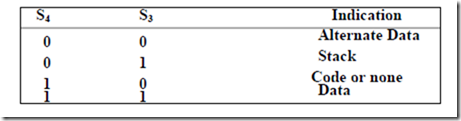

•Bit S4 and S3 together from a 2 bit binary code that identifies which of the 8086 internal segment registers are used to generate the physical address that was output on the address bus during the current bus cycle.
•Code S4S3 = 00 identifies a register known as extra segment register as the source of the segment address.
•Status line S5 reflects the status of another internal characteristic of the 8086. It is the logic level of the internal enable flag. The last status bit S6 is always at the logic 0 level.

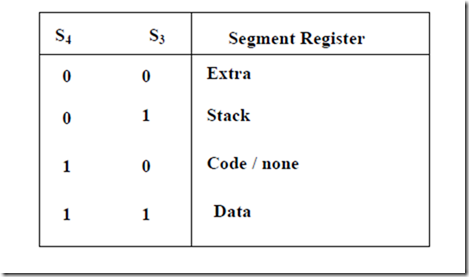

Memory segment status codes.
•Control Signals:
The control signals are provided to support the 8086 memory I/O interfaces. They control functions such as when the bus is to carry a valid address in which direction data are to be transferred over the bus, when valid write data are on the bus and when to put read data on the system bus.
•ALE is a pulse to logic 1 that signals external circuitry when a valid address word is on the bus. This address must be latched in external circuitry on the 1-to-0 edge of the pulse at ALE.

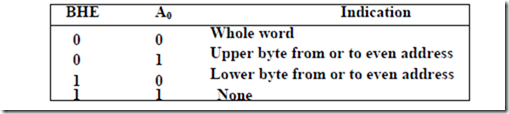

•Another control signal that is produced during the bus cycle is BHE bank high enable. Logic 0 on this used as a memory enable signal for the most significant byte half of the data bus D8 through D1. These lines also serves a second function, which is as the S7 status line.
•Using the M/IO and DT/R lines, the 8086 signals which type of bus cycle is in progress and in which direction data are to be transferred over the bus.
•The logic level of M/IO tells external circuitry whether a memory or I/O transfer is taking place over the bus. Logic 1 at this output signals a memory operation and logic 0 an I/O operation.
•The direction of data transfer over the bus is signaled by the logic level output at DT/R. When this line is logic 1 during the data transfer part of a bus cycle, the bus is in the transmit mode. Therefore, data are either written into memory or output to an I/O device.
•On the other hand, logic 0 at DT/R signals that the bus is in the receive mode. This corresponds to reading data from memory or input of data from an input port.
•The signal read RD and write WR indicates that a read bus cycle or a write bus cycle is in progress. The 8086 switches WR to logic 0 to signal external device that valid write or output data are on the bus.
• On the other hand, RD indicates that the 8086 is performing a read of data of the bus. During read operations, one other control signal is also supplied. This is DEN ( data enable) and it signals external devices when they should put data on the bus.
•There is one other control signal that is involved with the memory and I/O interface. This is the READY signal.
•READY signal is used to insert wait states into the bus cycle such that it is extended by a number of clock periods. This signal is provided by an external clock generator device and can be supplied by the memory or I/O sub-system to signal the 8086 when they are ready to permit the data transfer to be completed.
•Interrupt signals: The key interrupt interface signals are interrupt request (INTR) and interrupt acknowledge( INTA).
•INTR is an input to the 8086 that can be used by an external device to signal that it need to be serviced.
•Logic 1 at INTR represents an active interrupt request. When an interrupt request has been recognized by the 8086, it indicates this fact to external circuit with pulse to logic 0 at the INTA output.
•The TEST input is also related to the external interrupt interface. Execution of a WAIT instruction causes the 8086 to check the logic level at the TEST input.
•If the logic 1 is found, the MPU suspend operation and goes into the idle state. The 8086 no longer executes instructions, instead it repeatedly checks the logic level of the TEST input waiting for its transition back to logic 0.
•As TEST switches to 0, execution resume with the next instruction in the program. This feature can be used to synchronize the operation of the 8086 to an event in external hardware.
•There are two more inputs in the interrupt interface: the nonmaskable interrupt NMI and the reset interrupt RESET.
•On the 0-to-1 transition of NMI control is passed to a nonmaskable interrupt service routine. The RESET input is used to provide a hardware reset for the 8086. Switching RESET to logic 0 initializes the internal register of the 8086 and initiates a reset service routine.
•DMA Interface signals:The direct memory access DMA interface of the 8086 minimum mode consist of the HOLD and HLDA signals.
•When an external device wants to take control of the system bus, it signals to the 8086 by switching HOLD to the logic 1 level. At the completion of the current bus cycle, the
8086 enters the hold state. In the hold state, signal lines AD0 through AD15, A16/S3
through A19/S6, BHE, M/IO, DT/R, RD, WR, DEN and INTR are all in the high Z state. The 8086 signals external device that it is in this state by switching its HLDA output to logic 1 level.

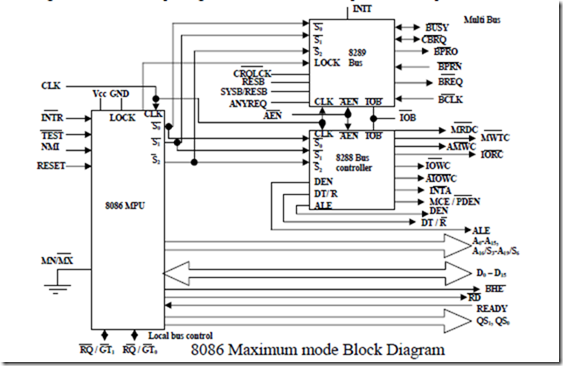

Maximum Mode Interface
•When the 8086 is set for the maximum-mode configuration, it provides signals for implementing a multiprocessor / coprocessor system environment.
•By multiprocessor environment we mean that one microprocessor exists in the system and that each processor is executing its own program.
•Usually in this type of system environment, there are some system resources that are common to all processors.
•They are called as global resources. There are also other resources that are assigned to specific processors. These are known as local or private resources.
•Coprocessor also means that there is a second processor in the system. In this two processor does not access the bus at the same time.
•One passes the control of the system bus to the other and then may suspend its operation.
•In the maximum-mode 8086 system, facilities are provided for implementing allocation of global resources and passing bus control to other microprocessor or coprocessor.
•8288 Bus Controller – Bus Command and Control Signals:
8086 does not directly provide all the signals that are required to control the memory, I/O and interrupt interfaces.
•Specially the WR, M/IO, DT/R, DEN, ALE and INTA, signals are no longer produced by the 8086. Instead it outputs three status signals S0, S1, S2 prior to the initiation of each bus cycle. This 3- bit bus status code identifies which type of bus cycle is to follow.

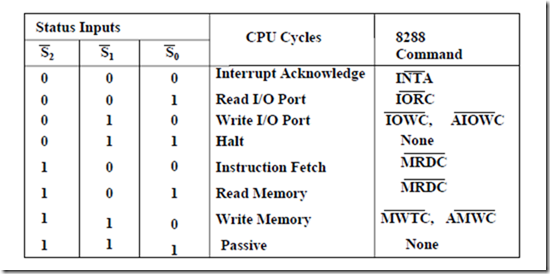

•S2S1S0 are input to the external bus controller device, the bus controller generates the appropriately timed command and control signals.
•The 8288 produces one or two of these eight command signals for each bus cycles. For instance, when the 8086 outputs the code S2S1S0 equals 001, it indicates that an I/O read cycle is to be performed.
•In the code 111 is output by the 8086, it is signaling that no bus activity is to take place.
•The control outputs produced by the 8288 are DEN, DT/R and ALE. These 3 signals provide the same functions as those described for the minimum system mode. This set of bus commands and control signals is compatible with the Multibus and industry standard for interfacing microprocessor systems.
•The output of 8289 are bus arbitration signals:
Bus busy (BUSY), common bus request (CBRQ), bus priority out (BPRO), bus priority in (BPRN), bus request (BREQ) and bus clock (BCLK).
•They correspond to the bus exchange signals of the Multibus and are used to lock other processor off the system bus during the execution of an instruction by the 8086.
•In this way the processor can be assured of uninterrupted access to common system resources such as global memory.
•Queue Status Signals: Two new signals that are produced by the 8086 in the maximum- mode system are queue status outputs QS0 and QS1. Together they form a 2-bit queue status code, QS1QS0.
•Following table shows the four different queue status.
Queue status codes
•Local Bus Control Signal – Request / Grant Signals: In a maximum mode configuration, the minimum mode HOLD, HLDA interface is also changed. These two are replaced by request/grant lines RQ/ GT0 and RQ/ GT1, respectively. They provide a prioritized bus access mechanism for accessing the local bus.
Internal Registers of 8086
•The 8086 has four groups of the user accessible internal registers. They are the instruction pointer, four data registers, four pointer and index register, four segment registers.
•The 8086 has a total of fourteen 16-bit registers including a 16 bit register called the
status register, with 9 of bits implemented for status and control flags.
•Most of the registers contain data/instruction offsets within 64 KB memory segment. There are four different 64 KB segments for instructions, stack, data and extra data. To specify where in 1 MB of processor memory these 4 segments are located the processor uses four segment registers:
•Code segment (CS) is a 16-bit register containing address of 64 KB segment with processor instructions. The processor uses CS segment for all accesses to instructions referenced by instruction pointer (IP) register. CS register cannot be changed directly. The CS register is automatically updated during far jump, far call and far return instructions.
•Stack segment (SS) is a 16-bit register containing address of 64KB segment with program stack. By default, the processor assumes that all data referenced by the stack pointer (SP) and base pointer (BP) registers is located in the stack segment. SS register can be changed directly using POP instruction.
•Data segment (DS) is a 16-bit register containing address of 64KB segment with program data. By default, the processor assumes that all data referenced by general registers (AX, BX, CX, DX) and index register (SI, DI) is located in the data segment. DS register can be changed directly using POP and LDS instructions.
•Accumulator register consists of two 8-bit registers AL and AH, which can be combined together and used as a 16-bit register AX. AL in this case contains the low- order byte of the word, and AH contains the high-order byte. Accumulator can be used for I/O operations and string manipulation.
•Base register consists of two 8-bit registers BL and BH, which can be combined together and used as a 16-bit register BX. BL in this case contains the low-order byte of the word, and BH contains the high-order byte. BX register usually contains a data pointer used for based, based indexed or register indirect addressing.
•Count register consists of two 8-bit registers CL and CH, which can be combined together and used as a 16-bit register CX. When combined, CL register contains the low- order byte of the word, and CH contains the high-order byte. Count register can be used in Loop, shift/rotate instructions and as a counter in string manipulation,.
•Data register consists of two 8-bit registers DL and DH, which can be combined together and used as a 16-bit register DX. When combined, DL register contains the low- order byte of the word, and DH contains the high-order byte. Data register can be used as a port number in I/O operations. In integer 32-bit multiply and divide instruction the DX register contains high-order word of the initial or resulting number.
•The following registers are both general and index registers:
•Stack Pointer (SP) is a 16-bit register pointing to program stack.
•Base Pointer (BP) is a 16-bit register pointing to data in stack segment. BP register is usually used for based, based indexed or register indirect addressing.
•Source Index (SI) is a 16-bit register. SI is used for indexed, based indexed and register indirect addressing, as well as a source data address in string manipulation instructions.
•Destination Index (DI) is a 16-bit register. DI is used for indexed, based indexed and register indirect addressing, as well as a destination data address in string manipulation instructions.
Other registers:
•Instruction Pointer (IP) is a 16-bit register.
•Flags is a 16-bit register containing 9 one bit flags.
•Overflow Flag (OF) – set if the result is too large positive number, or is too small negative number to fit into destination operand.
•Direction Flag (DF) – if set then string manipulation instructions will auto-decrement index registers. If cleared then the index registers will be auto-incremented.
•Interrupt-enable Flag (IF) – setting this bit enables maskable interrupts.
•Single-step Flag (TF) – if set then single-step interrupt will occur after the next instruction.
•Sign Flag (SF) – set if the most significant bit of the result is set.
•Zero Flag (ZF) – set if the result is zero.
•Auxiliary carry Flag (AF) – set if there was a carry from or borrow to bits 0-3 in the AL register.
•Parity Flag (PF) – set if parity (the number of "1" bits) in the low-order byte of the result is even.
•Carry Flag (CF) – set if there was a carry from or borrow to the most significant bit during last result calculation.
Addressing Modes
•Implied – the data value/data address is implicitly associated with the instruction.
•Register – references the data in a register or in a register pair.
•Immediate – the data is provided in the instruction.
•Direct – the instruction operand specifies the memory address where data is located.
•Register indirect – instruction specifies a register containing an address, where data is located. This addressing mode works with SI, DI, BX and BP registers.
•Based:- 8-bit or 16-bit instruction operand is added to the contents of a base register (BX or BP), the resulting value is a pointer to location where data resides.
•Indexed:- 8-bit or 16-bit instruction operand is added to the contents of an index register (SI or DI), the resulting value is a pointer to location where data resides
•Based Indexed:- the contents of a base register (BX or BP) is added to the contents of an index register (SI or DI), the resulting value is a pointer to location where data resides.
•Based Indexed with displacement:- 8-bit or 16-bit instruction operand is added to the contents of a base register (BX or BP) and index register (SI or DI), the resulting value is a pointer to location where data resides.
Memory •Program, data and stack memories occupy the same memory space. As the most of the processor instructions use 16-bit pointers the processor can effectively address only 64 KB of memory.
•To access memory outside of 64 KB the CPU uses special segment registers to specify where the code, stack and data 64 KB segments are positioned within 1 MB of memory (see the "Registers" section below).
•16-bit pointers and data are stored as: address: low-order byte
address+1: high-order byte
•Program memory – program can be located anywhere in memory. Jump and call instructions can be used for short jumps within currently selected 64 KB code segment, as well as for far jumps anywhere within 1 MB of memory.
•All conditional jump instructions can be used to jump within approximately +127 to – 127 bytes from current instruction.
•Data memory – the processor can access data in any one out of 4 available segments, which limits the size of accessible memory to 256 KB (if all four segments point to different 64 KB blocks).
•Accessing data from the Data, Code, Stack or Extra segments can be usually done by prefixing instructions with the DS:, CS:, SS: or ES: (some registers and instructions by default may use the ES or SS segments instead of DS segment).
•Word data can be located at odd or even byte boundaries. The processor uses two memory accesses to read 16-bit word located at odd byte boundaries. Reading word data from even byte boundaries requires only one memory access.
•Stack memory can be placed anywhere in memory. The stack can be located at odd memory addresses, but it is not recommended for performance reasons (see "Data Memory" above).
Reserved locations:
•0000h – 03FFh are reserved for interrupt vectors. Each interrupt vector is a 32-bit pointer in format segment: offset.
•FFFF0h – FFFFFh – after RESET the processor always starts program execution at the FFFF0h address.
Interrupts
The processor has the following interrupts:
•INTR is a maskable hardware interrupt. The interrupt can be enabled/disabled using STI/CLI instructions or using more complicated method of updating the FLAGS register with the help of the POPF instruction.
•When an interrupt occurs, the processor stores FLAGS register into stack, disables further interrupts, fetches from the bus one byte representing interrupt type, and jumps to interrupt processing routine address of which is stored in location 4 * <interrupt type>. Interrupt processing routine should return with the IRET instruction.
•NMI is a non-maskable interrupt. Interrupt is processed in the same way as the INTR interrupt. Interrupt type of the NMI is 2, i.e. the address of the NMI processing routine is stored in location 0008h. This interrupt has higher priority then the maskable interrupt.
•Software interrupts can be caused by:
•INT instruction – breakpoint interrupt. This is a type 3 interrupt.
•INT <interrupt number> instruction – any one interrupt from available 256 interrupts.
•INTO instruction – interrupt on overflow
•Single-step interrupt – generated if the TF flag is set. This is a type 1 interrupt. When the CPU processes this interrupt it clears TF flag before calling the interrupt processing routine.
•Processor exceptions: Divide Error (Type 0), Unused Opcode (type 6) and Escape opcode (type 7).
•Software interrupt processing is the same as for the hardware interrupts.
