Compressible Flows: Basics, Speed of Sound and Isentropic Nozzle Flow

Compressible Flows

Compressible ﬂows occur when the density changes are signiﬁcant between two points on a streamline. Not all gas ﬂows are compressible ﬂows, only those that have signiﬁcant density changes. Flow around automobiles, in hurricanes, around aircraft during landing and takeoff, and around buildings are a few examples of incompressible ﬂows in which the density of the air does not change more than 3 percent between points of interest and are consequently treated as incompressible ﬂows. There are, however, many examples of gas ﬂows in which the density does change signiﬁcantly; they include airﬂow around aircraft that ﬂy faster than a Mach number [see Eq. (3.18)] of 0.3 (about 100 m/s), through compressors, jet engines, and tornados. Not considered in this chapter are compressible effects in liquid ﬂows that give rise to water hammer and underwater compression waves from blasts.

9.1 Basics

Only compressible ﬂow problems that can be solved using the integral equations will be considered in this chapter. The simplest of these is uniform ﬂow in a conduit. Recall that the continuity equation, the momentum equation, and the energy equation (no work or heat transfer) are, respectively,

where the enthalpy h = u– + p/ρ is used. If the gas can be approximated as an ideal gas, then the energy equation takes either of the following two forms:

Recall that the temperatures and pressures must always be absolute quantities when using several of the above relations. It is always safe to use absolute temperature and pressure when solving problems involving a compressible ﬂow.

9.2 Speed of Sound

A pressure wave with small amplitude is called a sound wave and it travels through a gas with the speed of sound, denoted by c. Consider the small-amplitude wave shown in Fig. 9.1 traveling through a conduit. In Fig. 9.2a it is moving so that a stationary observer sees an unsteady motion; in Fig. 9.2b the observer moves with the wave so that the wave is stationary and a steady ﬂow is observed; Fig. 9.2c shows the control volume surrounding the wave. The wave is assumed to create a small differential change in the pressure p, the temperature T, the density r, and the velocity V in the gas. The continuity equation applied to the control volume provides

Figure 9.2 The propagation of sound waves from a source: (a) a stationary source; (b) a moving source with M < 1; (c) a moving source with M > 1.

Combining the continuity and momentum equations results in

for the small-amplitude sound waves.

The lower-frequency (less than 18 000 Hz) sound waves travel isentropically so that p/r k = const which, when differentiated, gives

For small-amplitude waves traveling through a liquid or a solid, the bulk modulus is used [see Eq. (1.17)]; it is equal to r dp/dr and has a value of 2100 MPa for water at 20°C. This gives a value for c of about 1450 m/s for a small-amplitude wave moving through water.

The Mach number, introduced in Chap. 3, is used for disturbances moving in a gas. It is

If M < 1, the ﬂow is subsonic, and if M > 1 the ﬂow is supersonic. Consider the stationary source of disturbances displayed in Fig. 9.2a; the sound waves are shown after three time increments. In Fig. 9.2b the source is moving at a subsonic speed, which is less than the speed of sound so the source “announces” its approach to an observer to the right. In Fig. 9.2c the source moves at a supersonic speed, which is faster than the speed of the source, so an observer is unaware of the source’s approach if the observer is in the zone of silence, which is outside the Mach cone shown. From the ﬁgure, the Mach cone has a Mach angle given by

The small-amplitude waves discussed above are referred to as Mach waves. They result from sources of sound, needle-nosed projectiles, and the sharp leading edge of supersonic airfoils. Large-amplitude waves, called shock waves, which emanate from the leading edge of blunt-nosed airfoils, also form zones of silence, but the angles are larger than those created by the Mach waves. Shock waves will be studied in a subsequent section.

EXAMPLE 9.1

An electronic device is situated on the top of a hill and hears a supersonic projectile that produces Mach waves after the projectile is 500 m past the device’s position. If it is known that the projectile ﬂies at 850 m/s, estimate how high it is above the device.

Solution

The Mach number is

where a standard temperature of 288 K has been assumed since the temperature was not given. The Mach angle relationship allows us to write

where h is the height above the device (refer to Fig. 9.2c). This equation can be solved for h to give

h = 218 m

9.3 Isentropic Nozzle Flow

There are numerous applications where a steady, uniform, isentropic ﬂow is a good approximation to the ﬂow in conduits. These include the ﬂow through a jet engine, through the nozzle of a rocket, from a broken gas line, and past the blades of a turbine. To model such situations, consider the control volume in the changing area of the conduit of Fig. 9.3. The continuity equation between two sections an inﬁnitesimal distance dx apart is

This simpliﬁes to, neglecting higher-order terms,

This equation applies to a steady, uniform, isentropic ﬂow.

There are several observations that can be made from an analysis of Eq. (9.26). They are:

• For a subsonic ﬂow in an expanding conduit (M < 1 and dA > 0), the ﬂow is decelerating (dV < 0).

• For a subsonic ﬂow in a converging conduit (M < 1 and dA < 0), the ﬂow is accelerating (dV > 0).

• For a supersonic ﬂow in an expanding conduit (M > 1 and dA > 0), the ﬂow is accelerating (dV > 0).

• For a supersonic ﬂow in a converging conduit (M > 1 and dA < 0), the ﬂow is decelerating (dV < 0).

• At a throat where dA = 0, either M = 1 or dV = 0 (the ﬂow could be accelerating through M = 1, or it may reach a velocity such that dV = 0).

Observe that a nozzle for a supersonic ﬂow must increase in area in the ﬂow direction, and a diffuser must decrease in area, opposite to a nozzle and diffuser for a subsonic ﬂow. So, for a supersonic ﬂow to develop from a reservoir where the velocity is zero, the subsonic ﬂow must ﬁrst accelerate through a converging area to a throat, followed by continued acceleration through an enlarging area.

Figure 9.4 A supersonic nozzle.

The nozzles on a rocket designed to place satellites in orbit are constructed using such converging-diverging geometry, as shown in Fig. 9.4.

The energy and continuity equations can take on particularly helpful forms for the steady, uniform, isentropic ﬂow through the nozzle of Fig. 9.4. Apply the energy

equation (9.4) with nozzle to obtain

Any quantity with a zero subscript refers to a stagnation point where the velocity is zero, such as in the reservoir. Using several thermodynamic relations [Eqs. (9.6), (9.9), (9.16), and (9.18)], Eq. (9.27) can be put in the forms

If the above equations are applied at the throat (the critical area signiﬁed by an asterisk (*) superscript, where M = 1), the energy equation takes the forms

The critical area is often referenced even though a throat does not exist, as in Table

D.1. For air with k = 1.4, the equations above provide

This ratio is included in the isentropic ﬂow Table D.1 for air. The table can be used in place of the above equations.

Now we will discuss some features of the above equations. Consider a converging nozzle connecting a reservoir with a receiver, as shown in Fig. 9.5. If the reservoir pressure is held constant and the receiver pressure reduced, the Mach number at the exit of the nozzle will increase until M = 1 is reached, indicated by the left curve in the ﬁgure. After M = 1 is reached at the nozzle exit for pr = 0.5283p0, the condition of choked ﬂow occurs and the velocity throughout the nozzle cannot change with further decreases in p . This is due to the fact that pressure changes downstream of the exit cannot travel upstream to cause changes in the ﬂow conditions.

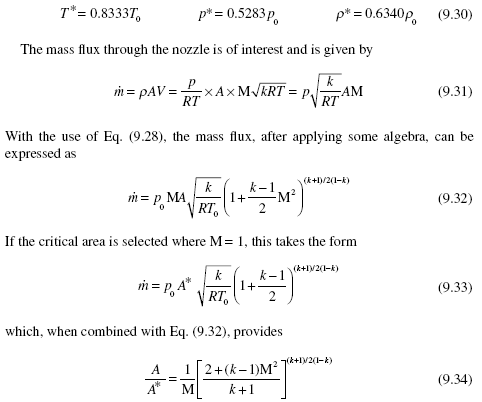

The right curve of Fig. 9.5b represents the case when the reservoir pressure is increased and the receiver pressure is held constant. When M = 1, the condition of choked ﬂow also occurs; but Eq. (9.33) indicates that the mass ﬂux will continue to increase as p is increased. This is the case when a gas line ruptures.

Figure 9.5 (a) A converging nozzle and (b) the pressure variation in the nozzle.

It is interesting that the exit pressure p is able to be greater than the receiver pressure p . Nature allows this by providing the streamlines of a gas the ability to make a sudden change of direction at the exit and expand to a much greater area resulting in a reduction of the pressure from p to p . The case of a converging-diverging nozzle allows a supersonic ﬂow to occur, providing the receiver pressure is sufﬁciently low. This is shown in Fig. 9.6 assuming a constant reservoir pressure with a decreasing receiver pressure. If the receiver pressure

Figure 9.6 A converging-diverging nozzle with reservoir pressure ﬁxed.

is equal to the reservoir pressure, no ﬂow occurs, represented by curve A. If p is slightly less than p , the ﬂow is subsonic throughout, with a minimum pressure at the throat, represented by curve B. As the pressure is reduced still further, a pressure is reached that results in M = 1 at the throat with subsonic ﬂow throughout the remainder of the nozzle.

There is another receiver pressure substantially below that of curve C that also results in isentropic ﬂow throughout the nozzle, represented by curve D; after the throat the ﬂow is supersonic. Pressures in the receiver in between those of curve C and curve D result in non-isentropic ﬂow (a shock wave occurs in the ﬂow) and will be considered in the next section. If p is below that of curve D, the exit pressure p is greater than p . Once again, for receiver pressures below that of curve C, the mass ﬂux remains constant since the conditions at the throat remain unchanged.

It may appear that the supersonic ﬂow will tend to separate from the nozzle, but just the opposite is true. A supersonic ﬂow can turn very sharp angles, as will be observed in Sec. 9.6, since nature provides expansion fans that do not exist in subsonic ﬂows. To

avoid separation in subsonic nozzles, the expansion angle should not exceed 10°. For larger angles, vanes are used so that the angle between the vanes does not exceed 10°.

EXAMPLE 9.2

Air ﬂows from a reservoir maintained at 300 kPa absolute and 20°C into a receiver

maintained at 200 kPa absolute by passing through a converging nozzle with an

exit diameter of 4 cm. Calculate the mass ﬂux through the nozzle. Use (a) the equations and (b) the isentropic ﬂow table.

Solution

(a) The receiver pressure that would give M = 1 at the nozzle exit is

For the units to be consistent, the pressure must be in Pa and R in J/kg · K.

(b) Now use Table D.1. For a pressure ratio of p/p₀= 200/300 = 0.6667, the Mach mnumber is found by interpolation to be

To ﬁnd the mass ﬂux the velocity must be known which requires the temperature

since The temperature is interpolated (similar to the interpolation for the Mach number) from Table D.1 to be Te = 0.8906 × 293 = 261 K. The velocity and density are then
